Product Information

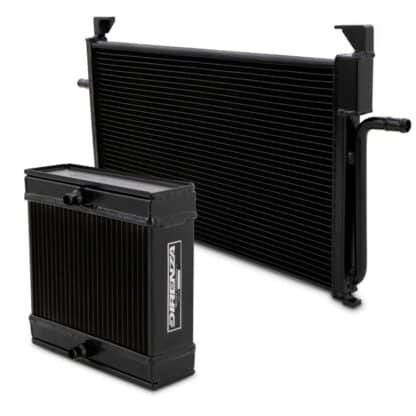

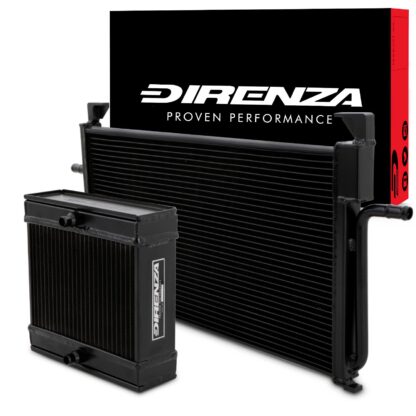

A direct replacement for the standard part, Direnza Charge Coolers are optimised for cooling capability. Constructed from aircraft-grade aluminium (well-known for its excellent thermal conductivity), our Charge Coolers are the perfect addition to any car, including those driven hard on track.
Designed and developed in-house by Direnza engineers, our Charge Coolers provide as much as 40% additional cooling capacity compared with standard systems, their robust yet intricate design, and exceptional cooling performance are a testament to our R&D processes.

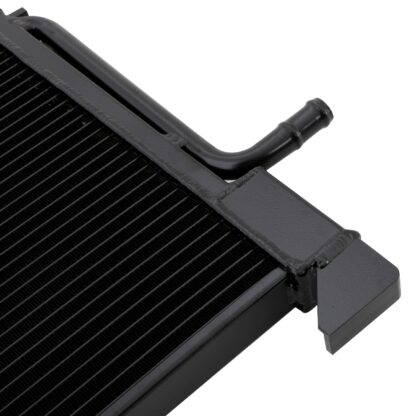

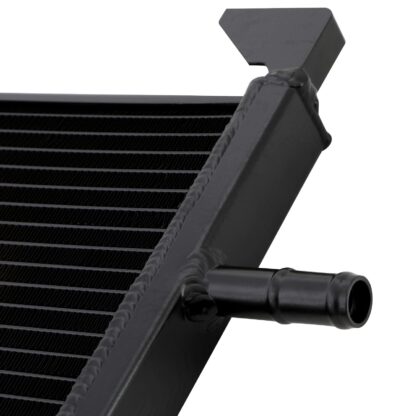

Direnza Charge Coolers are TIG-welded for additional strength and durability. TIG welding also provides a more precise finish than MIG welding and reduces stress on the material at hand. Our Charge Coolers will enhance the appearance of any engine bay.
Individual items also available:
Mercedes A Class A45 AMG 13-18 – Charge Cooler Radiator
Mercedes A Class A45 AMG 13-18 – Secondary Radiator
Fitments

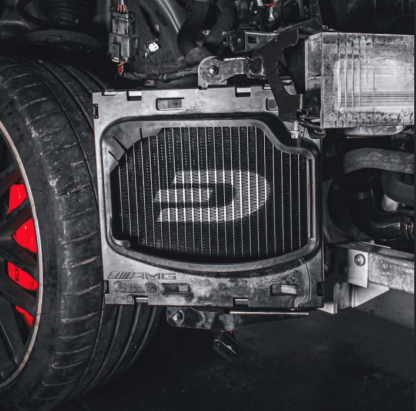

Mercedes A Class A45 AMG W176 13-18 models
Weight | 11 kg |
---|---|
Product Category | Intercooler / Radiator |

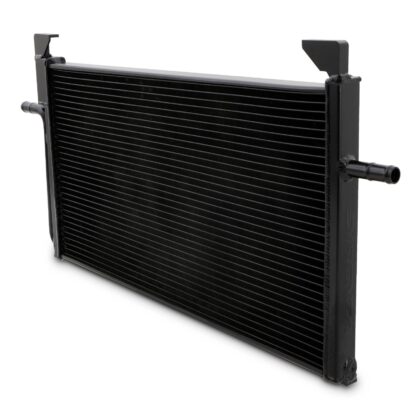

Main – Overall Width (mm) | 800 |
Main – Overall Length (mm) | 309 |
Main – Overall Depth (mm) | 40 |
Main – Outlet Bore (mm) | 22 |
Main – Inlet Bore (mm) | 22 |
Main – Core Width (mm) | 602 |
Main – Core Length (mm) | 304 |
Main – Core Depth (mm) | 40 |

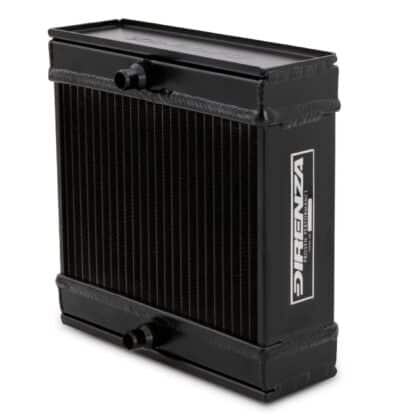

Secondary – Overall Width (mm) | 260 |
Secondary – Overall Length (mm) | 205 |
Secondary – Overall Depth (mm) | 80 |
Secondary – Outlet Bore (mm) | 17 |
Secondary – Inlet Bore (mm) | 17 |
Secondary – Core Width (mm) | 180 |
Secondary – Core Length (mm) | 205 |
Secondary – Core Depth (mm) | 80 |
