Product Information

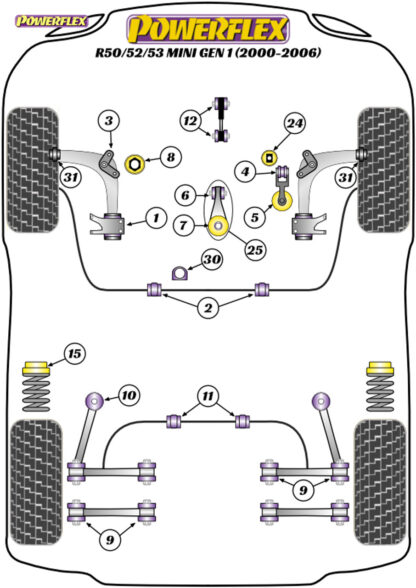

DIAGRAM REFERENCE: 25

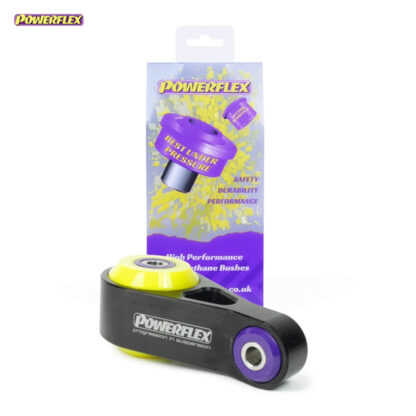

PRODUCT NOTES: An anodised CNC-Machined 6082 Aluminium mount pre-fitted with polyurethane bushes, for a true bolt-off, bolt-on replacement, with no pressing or assembly required. This Road Series mount provides a 100% increase in overall stiffness over the original voided mount, using a combined Purple 80A durometer small bush; and a 2-piece design large bush with Purple 80A and Yellow 70A bush components. With a minimal increase in NVH, reduced wheel hop and a more direct transition of power to the road, it is suitable for standard and mildly tuned vehicles and would be considered as the next step upgrade to our PFF5-107 and PFF5-120 offerings. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine and chassis. The harder the material used, the greater the NVH transmitted.



BUSH SIZE IF APPLICABLE:



NUMBER OF BUSHES IN PACK:1



REPLACES OEM BUSH PART NUMBERS:22116756406//
