Product Information
- Volkswagen Golf GTI MK4 1.8t 1998-2004 models
- Volkswagen Bora 1.8T 1999-2004 models
- Volkswagen Jetta 1.8T 1999-2004 models
Fitments

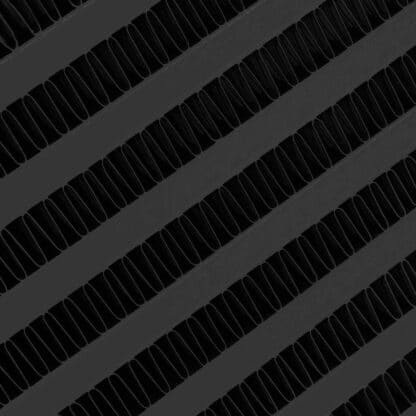

- Aluminium bar and plate design intercooler core
- Please note fitting instructions are NOT included
- Designed for maximum cooling capacity while allowing for minimal pressure drops
- Provides increased horsepower capacity for your 1.8T engine
- We recommend all cooling components are fitted by a qualified mechanic to ensure the correct fitment
| Core Height (mm) |
65 |
|---|---|
| Core Length (mm) |
550 |
| Core Width (mm) |
175 |
| Overall Length (mm) |
690 |
| Overall Height (mm) |
65 |
| Overall Width (mm) |
200 |
| Inlet Bore (mm) |
63 |
| Outlet Bore (mm) |
63 |
| Pipe Bore 1 (mm) |
51 |
| Sensor Ports |
1 x 12mm / 1 x 18mm |
| Clamps |
8x 54-62mm / 6 x 67-75mm / 1 x 60-68mm |
| Silicone 1 (mm) |
50 |
| Silicone 2 (mm) |
50 |
| Silicone 3 (mm) |
50 |
| Pipe Bore 2 (mm) |
51 |
| Silicone 4 (mm) |
63 |
| Silicone 5 (mm) |
63 |
| Silicone 6 (mm) |
50-63 |
| Silicone 7 (mm) |
50-57 |
| Pipe Bore 3 (mm) |
63 |
| Pipe Bore 4 (mm) |
50+18 |
