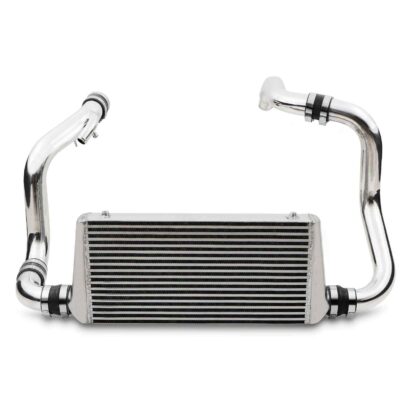

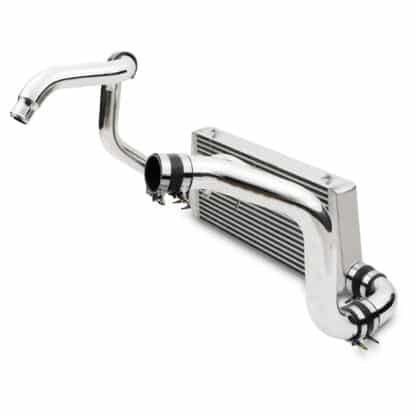

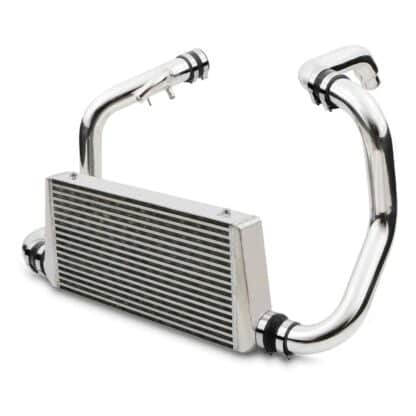

Product Information

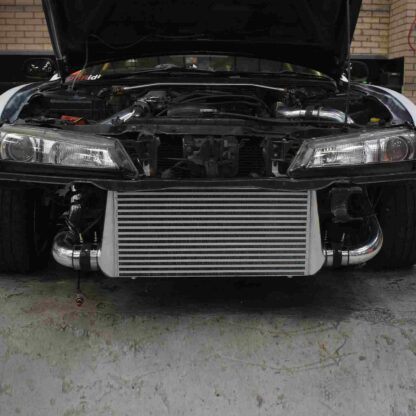

- Nissan Silvia 200SX S14, S14A, S15 SR20DET 1993-2002 models
Please Note:
The BOV port blanking plate is NOT included
Fitments
- Manufactured from highest quality and strength aluminium to help reduce weight without compromising strength
- Great way to increase power in the SR20 by reducing the engine’s inlet temperatures allowing denser air charge into the engine

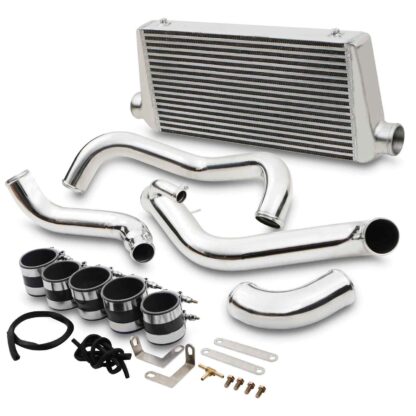

- Comprehensive kit that comes with all necessary clamps, bolts etc

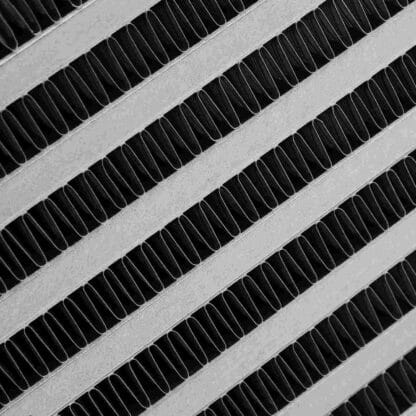

- Durable bar-and-plate core for superior durability and performance
- Designed for maximum cooling capacity while allowing for minimal pressure drops
| Weight | 15.5 kg |
|---|---|
| Core Length (mm) |
600 |
| Core Width (mm) |
75 |
| Core Depth (mm) |
300 |
| Overall Length (mm) |
780 |
| Overall Width (mm) |
75 |
| Overall Depth (mm) |
320 |
| Silicone 1 (mm) |
2 x 70 Straight |
| Silicone 2 (mm) |
63 Straight |
| Silicone 3 (mm) |
63 – 76 Reducer |
| Silicone 4 (mm) |
70 – 76 Reducer |
| Fittings |
3 Brackets |

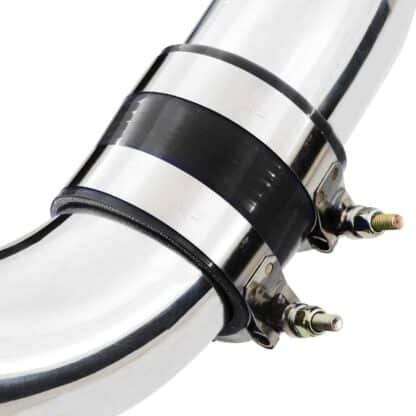

| Clamps |
2 x 79-87 / 5 x 73-81 / 3 x 67-75 |

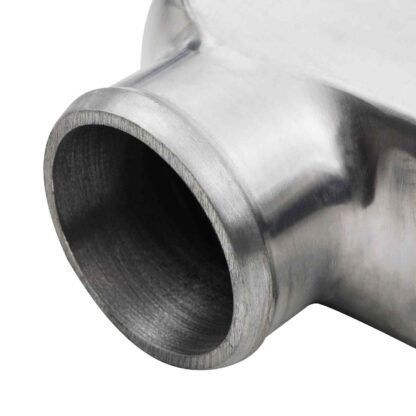

| Inlet Bore (mm) |
75 |
| Outlet Bore (mm) |
75 |
| Pipe Bore 1 (mm) |
70 / 32 / 16 / 6 |
| Pipe Bore 2 (mm) |
63 |
| Pipe Bore 3 (mm) |
68 |
| Pipe Bore 4 (mm) |
64-52 |
