Product Information

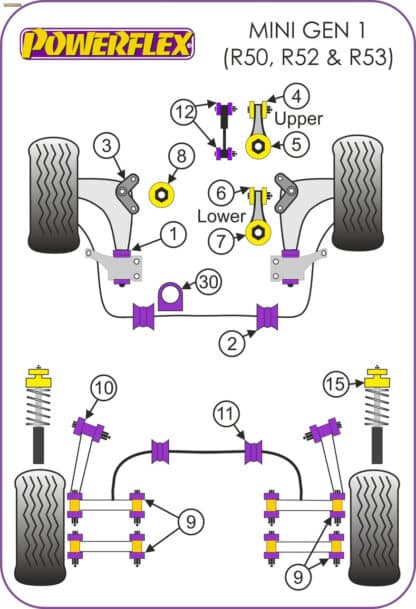

DIAGRAM REFERENCE: 1

PRODUCT NOTES:

PFF5-101G offers additional +2 of caster and is a high performance option to PFF5-101. Aimed at offering greater precision with improved geometry for people wanting the very best from their Mini. This new part, fitted to the rear of the front wishbone has a hard anodised aluminium outer shell with one of our unique low friction polyurethane centre bushes. The poly/alu combination creates a low friction rotating bush reducing the forces acting on the arm. Lower arm deflection has been decreased by reducing the compliant material within the aluminium shell. Additional caster angle will give more negative camber when cornering giving improved tyre to road contact. Results are improved geometry when turning giving additional grip, steering control and feel with less movement in the arm under cornering and braking. When fitting PFF5-132G Camber Ball Joint, which offers additional negative camber, we recommend using PFF5-101G which neutralises the caster lost by moving the arm position bringing the caster angle back to standard.



BUSH SIZE IF APPLICABLE:



NUMBER OF BUSHES IN PACK: 2



REPLACES OEM BUSH PART NUMBERS: 31126757551 31122318452

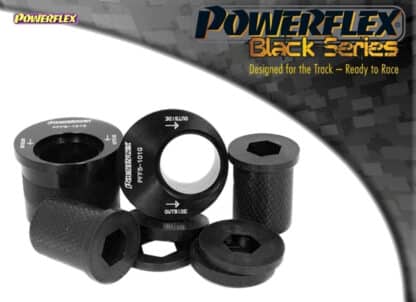

Black Series



For Track and Motorsport use.



POWERFLEX Black Series bushes are manufactured using our Black 95 Shore A compound to provide maximum control of chassis geometry. They are designed for the Track, ready to Race and are engineered to be the best.
