Product Information

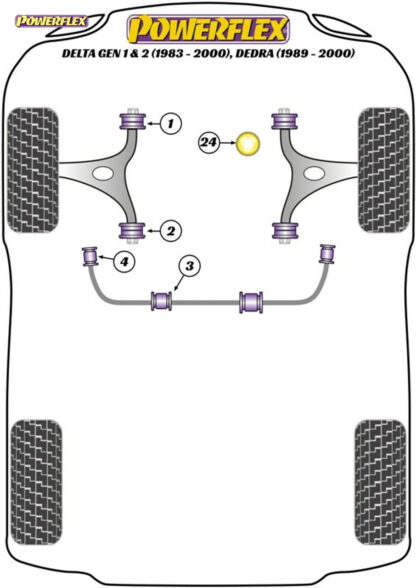

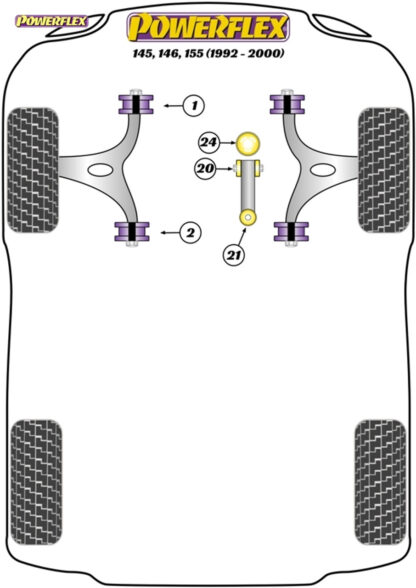

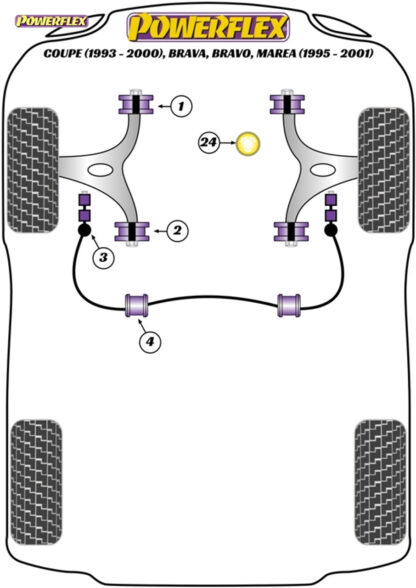

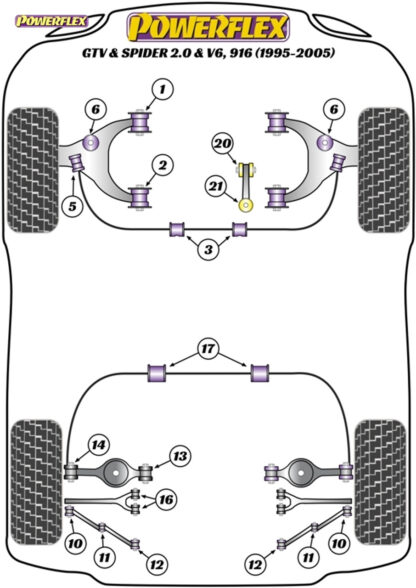

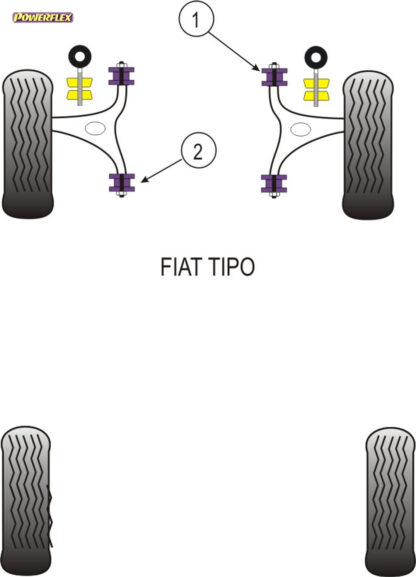

DIAGRAM REFERENCE: 2

PRODUCT NOTES:

These bushes are designed to fit genuine control arms. If non genuine arms are fitted and you find the stainless steel sleeve not to fit onto the wishbone, please contact us with dimensions of the wishbone pin as you will require modified sleeves. PFF1-802 kit comes with different sized rings. Please select the correct ring depending on the rear bracket fitted.Use the smaller ring (802b) with the aluminium bracket and 802c with the pressed steel bracket.It is only possible to fit these bushes after removing the arms from the car.For arms fitted with the pressed steel rear bracket, the rubber bush may need to beburned out using a blowtorch, firstly and then the bracket cleaned thoroughly to ensure a good surface.WE RECOMMEND THE USE OF LOCTITE 648 OR 848 TO SECURE CENTRE SLEEVE TO ARM



BUSH SIZE IF APPLICABLE:



NUMBER OF BUSHES IN PACK: 2



REPLACES OEM BUSH PART NUMBERS:

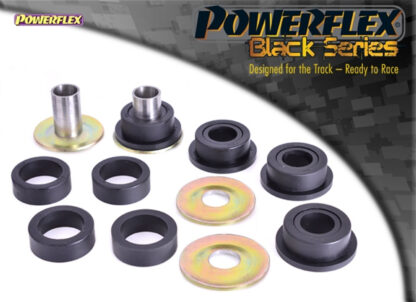

Black Series



For Track and Motorsport use.



POWERFLEX Black Series bushes are manufactured using our Black 95 Shore A compound to provide maximum control of chassis geometry. They are designed for the Track, ready to Race and are engineered to be the best.
