Product Information

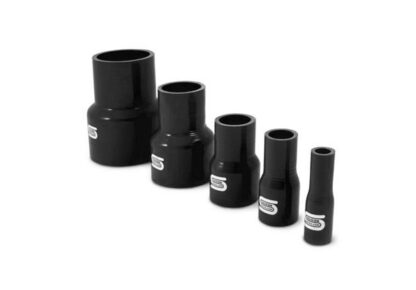

32-28mm Straight Reducer Silicone Hose

Technical Details

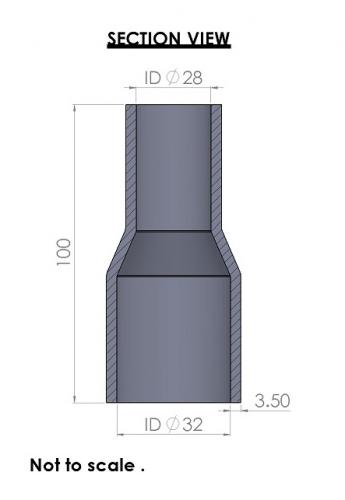

• Straight reducer hoses are 100mm long up to 57mm diameter and 125mm long from 60mm to 102mm.
• From 6mm diameter up to 48mm diameter are of 3 ply construction, and a wall thickness of 3.5mm.
• From 49mm diameter up to 83mm diameter are of 4 ply construction, and a wall thickness of 5mm.
• From 84mm diameter up to 102mm diameter are 5 ply construction, and a wall thickness of 6mm.
• Burst pressures are rated at 4:1 of safe working load. Separate test sheet results available.
