Product Information

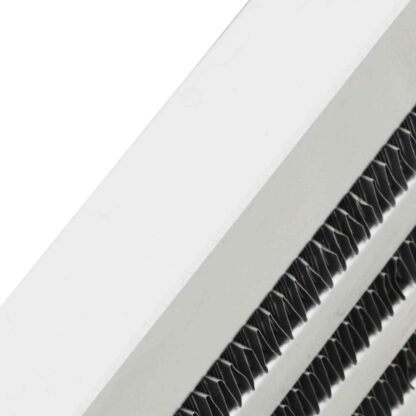

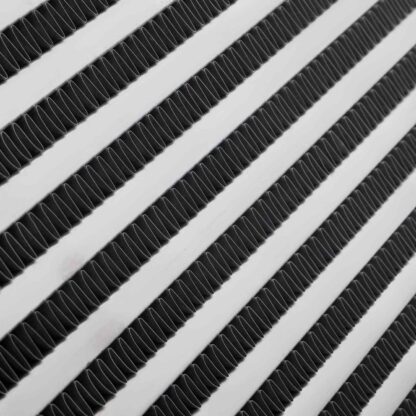

- Durable bar-and-plate core for superior durability and performance
- High flowing handmade end tanks

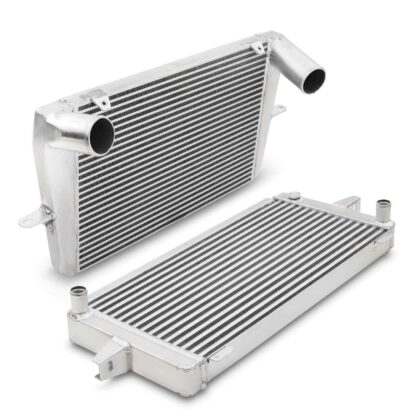

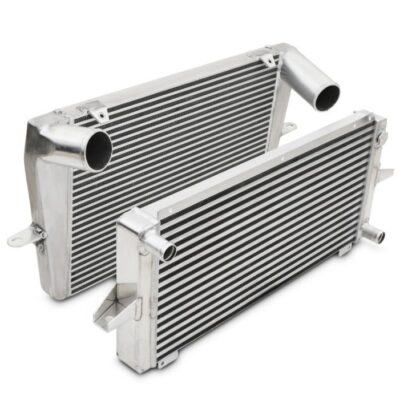

- Two in one upgrade kit for a big boost to the air and water cooling capabilities of the vehicle

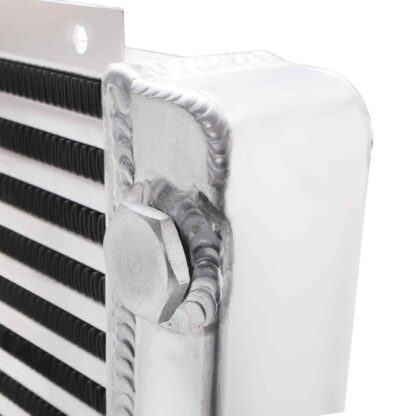

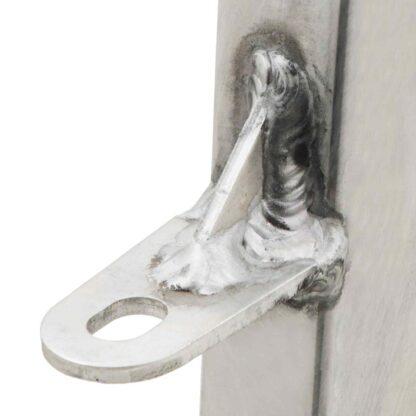

- Polished alloy and TIG welded for strength and long lasting durability
Fitments
- Ford Sierra Cosworth RS500 2WD & 4WD models
Please Note: – Modifications may be required to make this fit correctly
| Weight | 17 kg |
|---|---|
| Intercooler Core Length (mm) | 605 |
| Intercooler Core Width (mm) | 200 |
| Intercooler Core Depth (mm) | 45 |
| Intercooler Overall Length (mm) | 840 |
| Intercooler Overall Width (mm) | 395 |
| Intercooler Overall Depth (mm) | 45 |

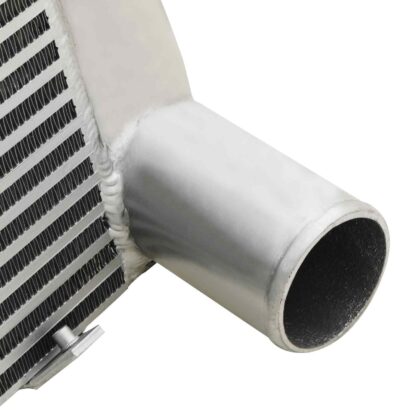

| Intercooler Inlet Bore (mm) | 76 |
| Intercooler Outlet Bore (mm) | 76 |
| Radiator Core Depth (mm) | 315 |
| Radiator Core Length (mm) | 640 |
| Radiator Core Width (mm) | 50 |
| Radiator Overall Depth (mm) | 350 |
| Radiator Overall Length (mm) | 870 |
| Radiator Overall Width (mm) | 115 |
| Radiator Sensor Port | 1 |
