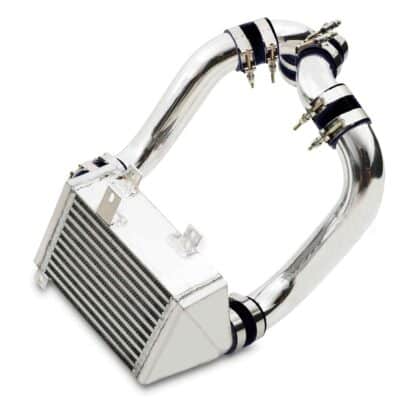

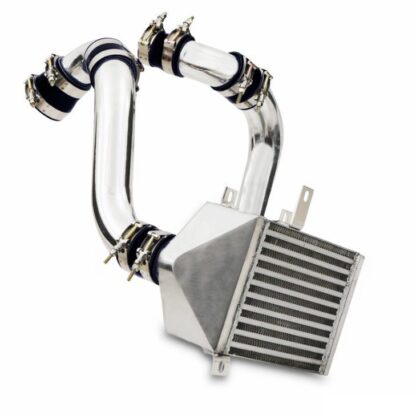

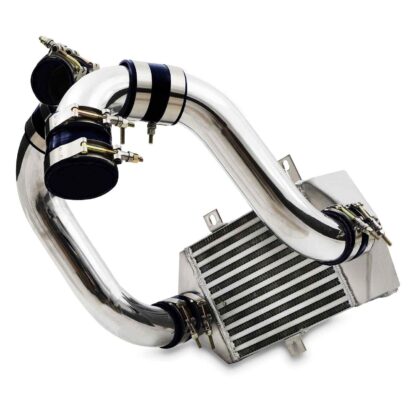

Product Information

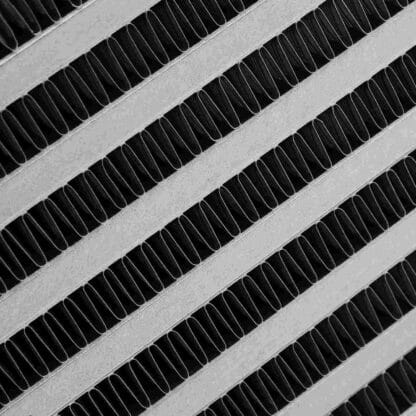

- Durable bar-and-plate core for superior durability and performance
- Manufactured from highest quality and strength aluminium to help reduce weight without compromising strength
- Great upgrade for a standard vehicle or a modified one running higher boost

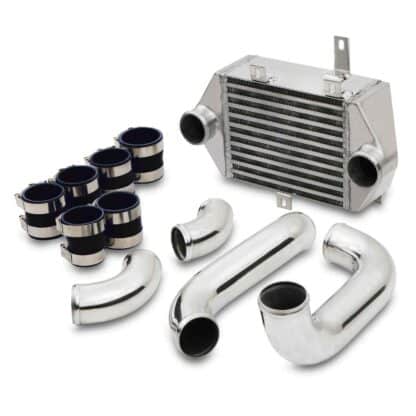

- Comprehensive kit with all clamps and silicones necessary
- Increases cooling capabilities and therefore horsepower capabilities over the OEM setup
Fitments
- Toyota MR2 SW20 MK2 2.0 Turbo 1990-1995 models.
| Weight | 8 kg |
|---|---|
| Core Length (mm) | 240 |
| Core Width (mm) | 100 |
| Core Depth (mm) | 192 |
| Overall Length (mm) | 390 |
| Overall Width (mm) | 130 |
| Overall Depth (mm) | 285 |

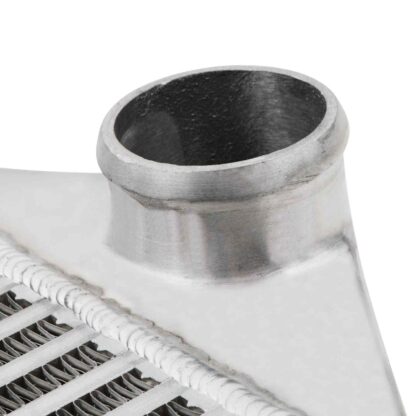

| Outlet Bore (mm) | 60 |
| Inlet Bore (mm) | 60 |
| Silicone 1 (mm) | 4 x 63mm Straight |
| Silicone 2 (mm) | 1 x 50 – 60mm Reducer |
| Silicone 3 (mm) | 1 x 63 – 70mm Reducer |
| Clamps | 9 x 67 – 75mm / 1 x 73 – 81mm / 1 x 63 – 71mm / 1 x 54 – 62mm |
| Pipe Bore 1 (mm) | 63mm |
| Pipe Bore 2 (mm) | 63mm |
| Pipe Bore 3 (mm) | 60mm |
| Pipe Bore 4 (mm) | 60mm |
