Product Information

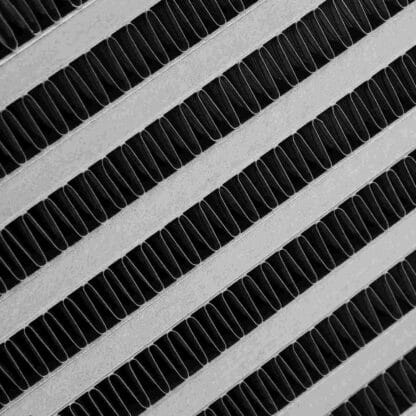

- Durable bar-and-plate core for superior durability and performance
- High flowing handmade end tanks

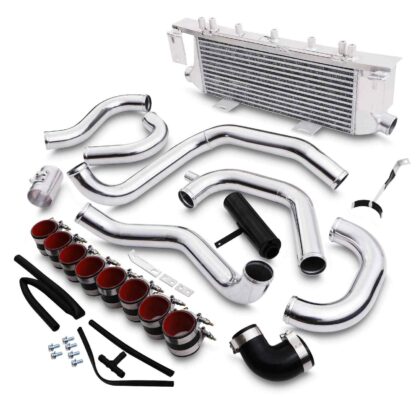

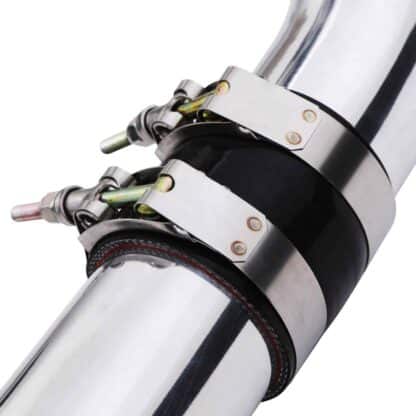

- Supplied with all necessary mikalor style T-clamps, brackets, hoses etc
- 1050cfm @ 0.5 psi drop
- No fitting instructions supplied
- We recommend all intercooler kits are fitted by a qualified mechanic to ensure the correct fitment
Fitments
- Subaru Impreza GDA / GDB WRX STI (Bugeye, Blobeye & Hawkeye) 2001-2007 models
Please note:
This will only fit a baileys style blow off valve
| Weight | 20 kg |
|---|---|
| Core Length (mm) | 650 |
| Core Width (mm) | 90 |
| Core Depth (mm) | 230 |
| Overall Length (mm) | 880 |
| Overall Width (mm) | 160 |
| Overall Depth (mm) | 240 |
| Silicone 1 (mm) | 8 x straight 63mm |
| Silicone 2 (mm) | 1 x 51-63mm 90 degree |
| Clamps | 2 x 54 – 62mm / 3 x 79 – 87mm / 7 x 67 – 75mm / 17 x 67 – 75mm Mikalor / 1 x 54 – 62mm Mikalor |
| Inlet Bore (mm) | 63 |
| Outlet Bore (mm) | 63 |
| Pipe Bore 1 (mm) | 63mm + 32mm |
| Pipe Bore 2 (mm) | 63mm |
| Pipe Bore 3 (mm) | 63mm |
| Pipe Bore 4 (mm) | 63mm |
| Pipe Bore 5 (mm) | 63mm |
