Product Information
Gravity Performance Front Mount Intercoolers are a perfect addition to your vehicle, offering greater cooling efficiency with their high flow end tanks and bar-and-plate cores. Manufactured from lightweight and durable aluminium, our intercoolers offer maximum performance without adding unnecessary weight to your build.
- Manufactured from high strength, lightweight aluminium

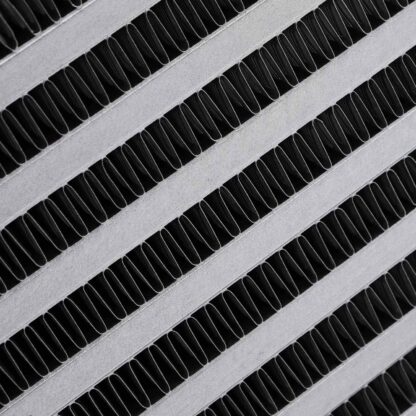

- Durable bar-and-plate core for superior durability and performance
- Designed to maximise cooling capacity whilst minimising pressure drops
- Comprehensive kit designed to directly replace the OEM setup for ease of install
- Capable of withstanding up to 3 Bar of boost, making it the perfect upgrade for modified Meganes
Fitments

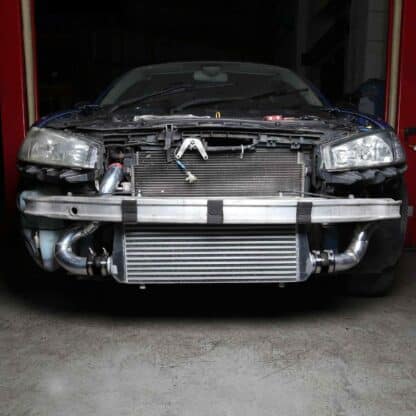

Renault Megane MK2 RS 225bhp R26 2.0 Turbo 2002-2009 models
| Clamps | 12 |
|---|---|
| Core Depth (mm) | 76 |
| Core Length (mm) | 600 |
| Core Width (mm) | 300 |
| Inlet & Outlet Bore (mm) | 76 |
| Overall Depth (mm) | 76 |
| Overall Length (mm) | 790 |
| Overall Width (mm) | 330 |
| Pipe Bore 1 (mm) | 63-62 OD |
| Pipe Bore 2 (mm) | 63-63 OD |
| Pipe Bore 3 (mm) | 63-63 OD |
| Pipe Bore 4 (mm) | 63-50 OD |
| Pipe Length 1 (mm) | 570 |
| Pipe Length 2 (mm) | 540 |
| Pipe Length 3 (mm) | 550 |
| Pipe Length 4 (mm) | 800 |
| Sensor Ports | 12 ID / 12.6 ID |
| Silicone 1 (mm) | 50 ID |
| Silicone 2 (mm) | 56-63 ID |
| Silicone 3 (mm) | 63 ID |
| Silicone 4 (mm) | 63 ID |
| Silicone 5 (mm) | 63-76 ID |
| Silicone 6 (mm) | 63-76 ID |

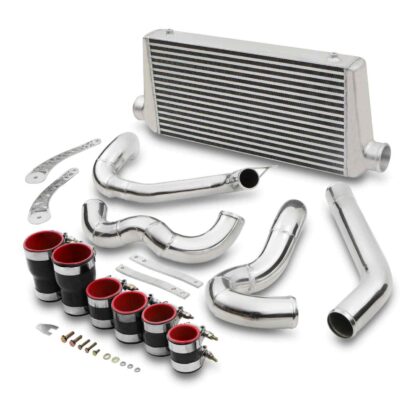

| Other | 4 x Brackets, 5 x Bolts and washers |
