Product Information
- Manufactured from highest quality and strength aluminium to help reduce weight without compromising strength
- Great way to increase power in the SR20 by reducing the engine’s inlet temperatures allowing denser air charge into the engine

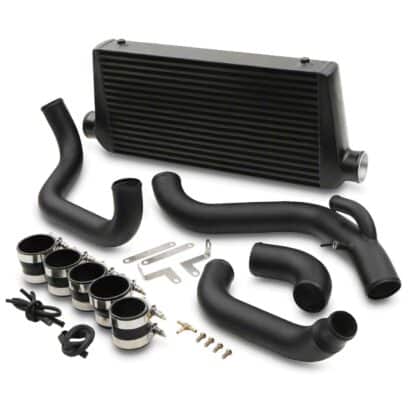

- Comprehensive kit that comes with all necessary clamps, bolts etc

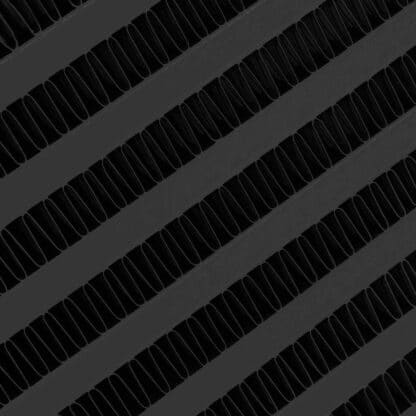

- Durable bar-and-plate core for superior durability and performance
- Designed for maximum cooling capacity while allowing for minimal pressure drops
Fitments
- Nissan Silvia 200SX S14, S14A & S15 SR20DET 1993-2002 models
Please Note:
Modifications will be required to allow fitment of the pipework.
| Weight | 15 kg |
|---|---|
| Core Length (mm) | 600 |
| Core Width (mm) | 75 |
| Core Depth (mm) | 300 |
| Overall Length (mm) | 780 |
| Overall Width (mm) | 75 |
| Overall Depth (mm) | 320 |
| Silicone 1 (mm) | 2 x 70mm Straight |
| Silicone 2 (mm) | 1 x 63mm Straight |
| Silicone 3 (mm) | 1 x 63-76mm reducer |
| Silicone 4 (mm) | 1 x 70-76mm reducer |
| Fittings | 3 x Brackets |

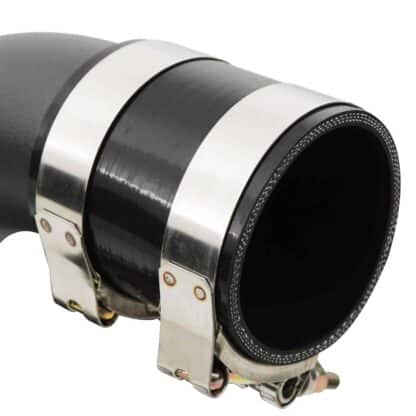

| Clamps | 2 x 79-87mm / 5 x 73-81mm / 3 x 67-75mm |
| Inlet Bore (mm) | 75 |
| Outlet Bore (mm) | 75 |
| Pipe Bore 1 (mm) | 63mm |
| Pipe Bore 2 (mm) | 70mm + 32 + 16mm + 6mm |
| Pipe Bore 3 (mm) | 68mm |
| Pipe Bore 4 (mm) | 64-52mm |
