Product Information

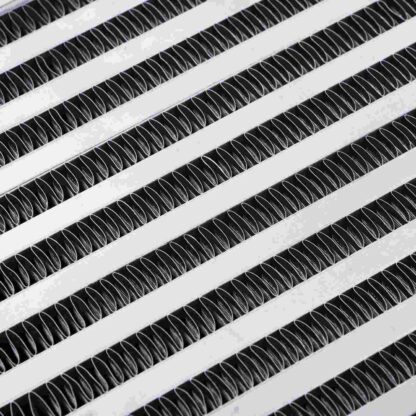

- Durable bar-and-plate core for superior durability and performance
- Designed to be a direct replacement for ease of install and maintenance
- Designed for maximum cooling capacity while allowing for minimal pressure drops
- 1050cfm @ 0.5 psi drop
- Pipework includes built-in map sensor fitting
Fitments
- Nissan Juke 1.6 Turbo 2010-2012 models.
| Weight | 7.6 kg |
|---|---|
| Core Length (mm) | 300 |
| Core Width (mm) | 100 |
| Core Depth (mm) | 175 |
| Overall Length (mm) | 510 |
| Overall Width (mm) | 165 |
| Overall Depth (mm) | 180 |
| Clamps | 7 x 67 – 75mm / 1 x 62 – 70mm |
| Inlet Bore (mm) | 65 |
| Outlet Bore (mm) | 55 |
| Pipe Bore 1 (mm) | 60 |
| Pipe Bore 2 (mm) | 58 |

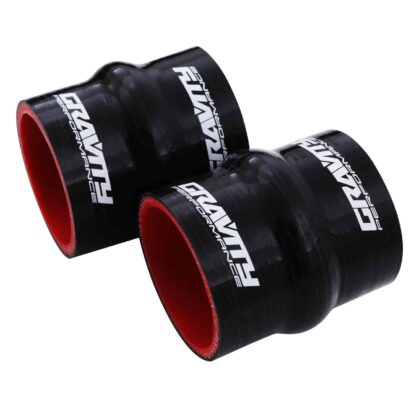

| Silicone 1 | 2 x 60mm Hump hose |
| Silicone 2 | 1 x 58-60mm Reducer |
| Silicone 3 | 1 x 58-64mm Reducer |
