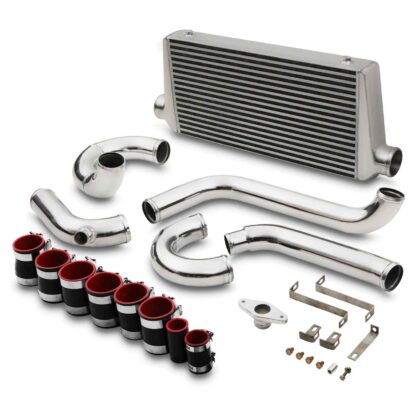

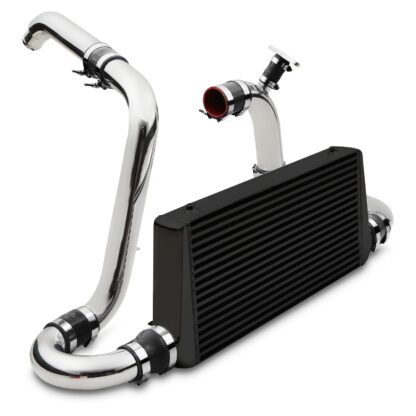

Product Information

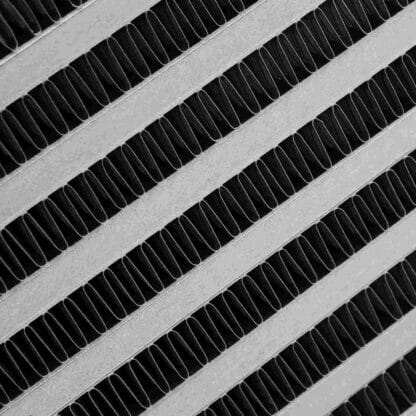

- Durable bar-and-plate core for superior durability and performance

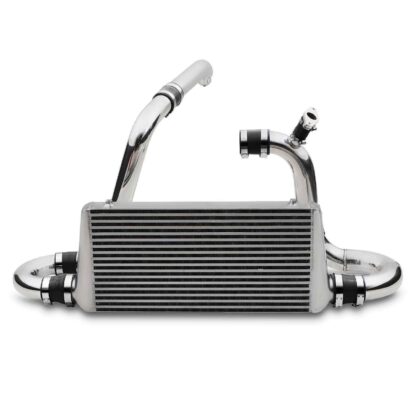

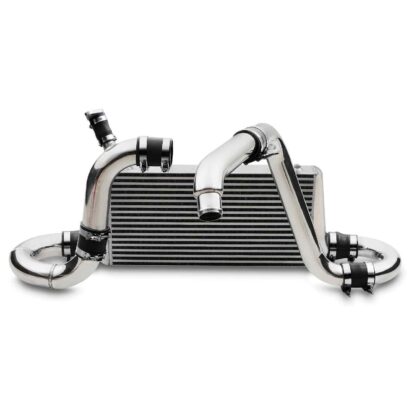

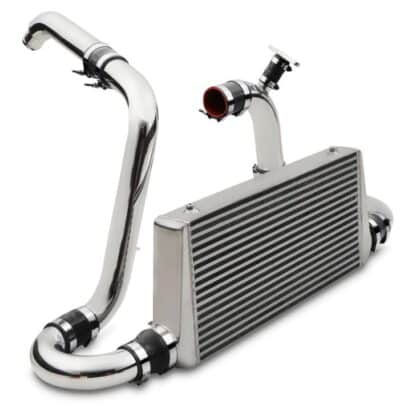

- Hand welded intercooler with polished finish end tanks

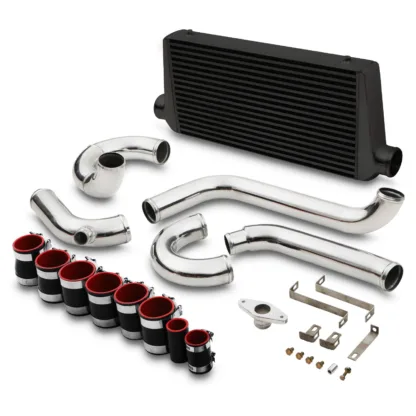

- Designed for maximum cooling capacity while allowing for minimal pressure drops
- Perfect upgrade for a standard car or a highly modified one
Fitments
- Mazda 3 2.3L MPS Turbo 2007-2009 models
| Weight | 15.5 kg |
|---|---|
| Core Length (mm) | 600 |
| Core Width (mm) | 300 |
| Core Depth (mm) | 75 |
| Overall Length (mm) | 785 |
| Overall Width (mm) | 330 |
| Overall Depth (mm) | 75 |
| Silicone 1 (mm) | 35 |
| Silicone 2 (mm) | 40 |
| Silicone 3 (mm) | 64 |
| Silicone 4 (mm) | 64 |
| Silicone 5 (mm) | 70 |
| Silicone 6 (mm) | 70 |
| Silicone 7 (mm) | 63-76 |
| Silicone 8 (mm) | 70-76 |
| Clamps | 13 |

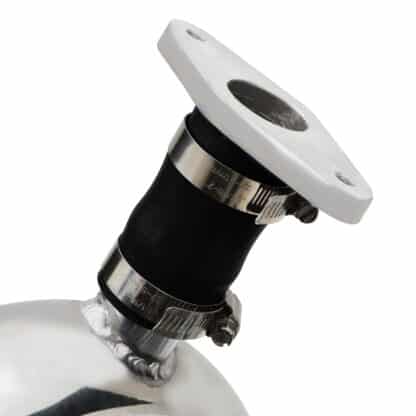

| Sensor Port (mm) | 35 |

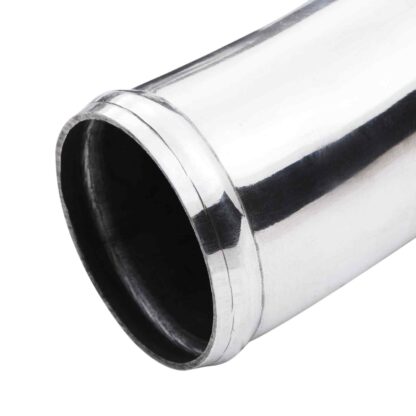

| Pipe Length 1 (mm) | 330 |
| Pipe Length 2 (mm) | 600 |
| Pipe Length 3 (mm) | 400 |
| Pipe Length 4 (mm) | 700 |
| Pipe Length 5 (mm) | 430 |
| Inlet Bore (mm) | 76 |
| Outlet Bore (mm) | 76 |
| Pipe Bore 1 (mm) | 70 |
| Pipe Bore 2 (mm) | 70 |
| Pipe Bore 3 (mm) | 62 |
| Pipe Bore 4 (mm) | 62 |
