Product Information

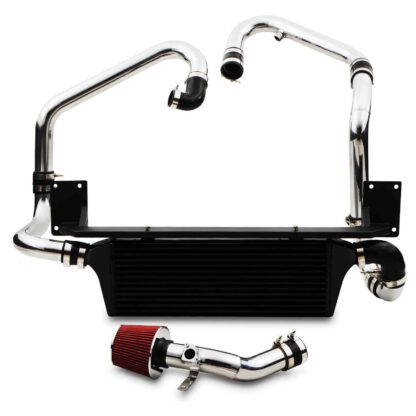

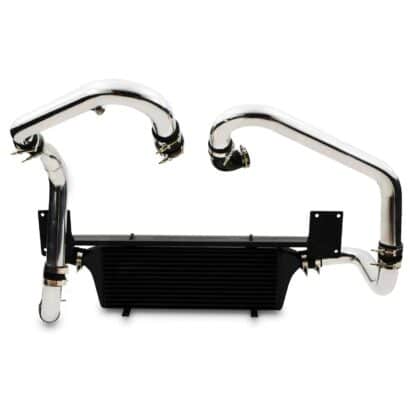

Gravity Performance Front Mount Intercoolers are a perfect addition to your vehicle, offering greater cooling efficiency with their high-flow end tanks and bar-and-plate cores. Manufactured from lightweight and durable aluminium, our intercoolers offer maximum performance without adding unnecessary weight to your build.

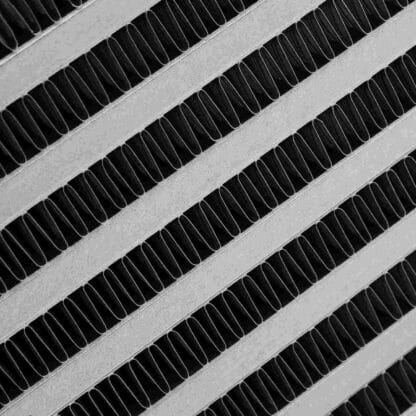

- Durable bar-and-plate core for superior durability and performance
- Full kit designed to optimise and streamline all air flow into the turbo and engine for additional power and power capabilities
- Black Intercoolers optimise heat dissipation, resulting in consistently lower temps

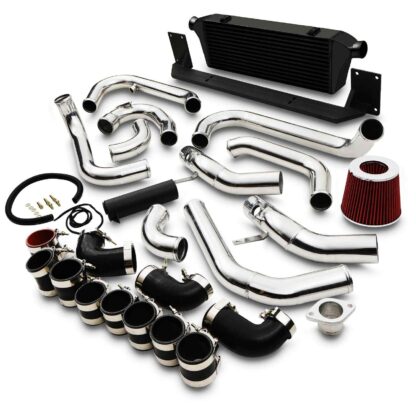

- Full bolt-on kit for ease of installation and maintenance
- 1050cfm @ 0.5 psi drop
Fitments
- Subaru Impreza & Legacy 2008-2011 all turbo charged models incl. WRX & STI
| Weight | 25.92 kg |
|---|---|
| Overall Length (mm) | 880 |
| Overall Width (mm) | 160 |
| Overall Depth (mm) | 250 |
| Inlet Bore (mm) | 63 |
| Outlet Bore (mm) | 63 |
| Core Depth (mm) | 230 |
| Core Length (mm) | 650 |
| Core Width (mm) | 90 |
| Clamps | 17 x 67 – 75mm / 3 x 73 – 81mm / 2 x 54 – 62mm |
| Pipe Bore 1 (mm) | 70mm + MAF |
| Pipe Bore 2 (mm) | 63mm |
| Pipe Bore 3 (mm) | 63mm + 32mm BOV |
| Pipe Bore 4 (mm) | 63 |
| Pipe Bore 5 (mm) | 63 |
| Pipe Bore 6 (mm) | 63 |
| Pipe Bore 7 (mm) | 63 |
| Pipe Bore 8 (mm) | 70mm + BOV |
| Pipe Bore 9 (mm) | 63 |
| Pipe Bore 10 (mm) | 64 – 70mm |
| Silicone 1 | 11mm 67cm long |
| Silicone 2 | 63mm 90 degree |
| Silicone 3 | 70mm Straight |
| Silicone 4 | 63 – 70mm Reducer |
| Silicone 5 | 63mm 45 Degree |
| Silicone 6 | 63-50mm 90 Degree |
| Silicone 7 | 63 – 50mm 90 Degree |
| Silicone 8 | 63mm Straight |
| Silicone 9 | 63mm Straight |
| Silicone 10 | 63mm Straight |
| Silicone 11 | 63mm Straight |
| Silicone 12 | 63mm Straight |

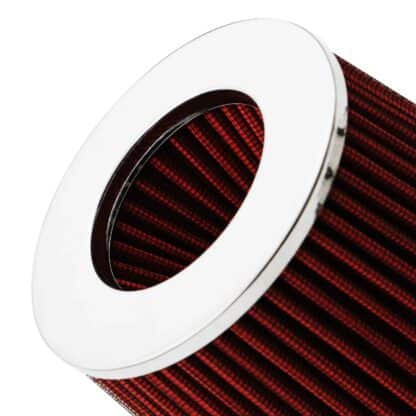

| Air Filter | 1 x Red Cotton |
