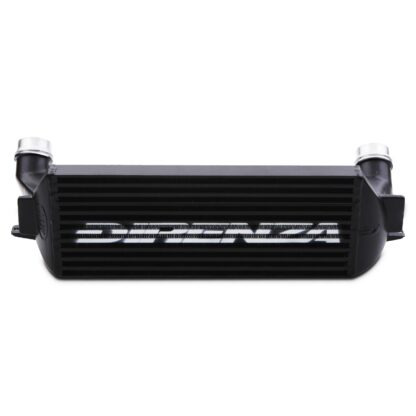

Product Information

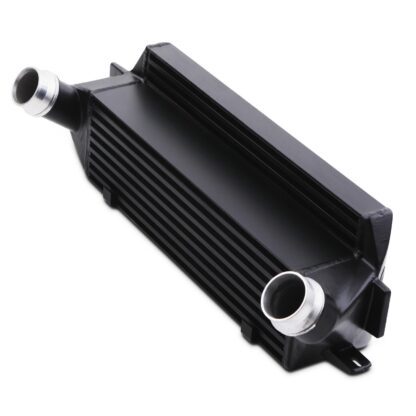

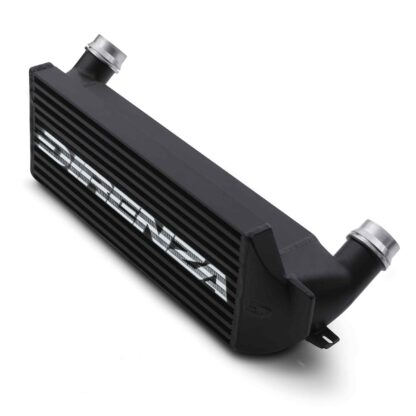

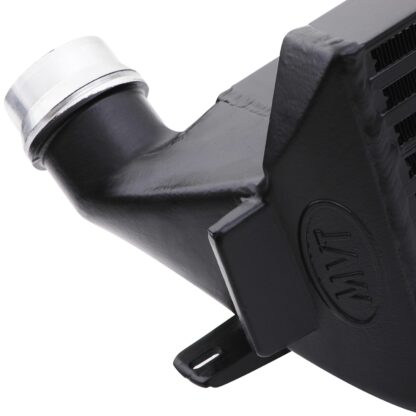

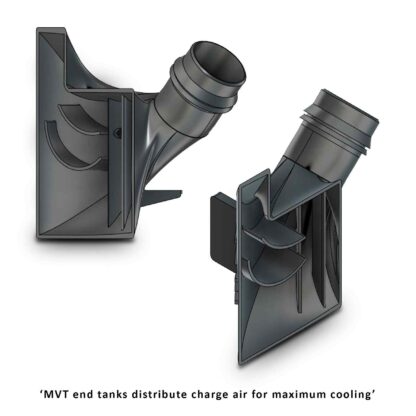

MVT technology designed by Direnza offers greater intercooler efficiency in comparison to other aftermarket alternatives. This is achieved through the use of carefully placed vanes in the end tank which evenly distribute air across the entire core. Ensuring the full surface area of the intercooler core is optimised to cool your charged air, resulting in more power.
- Intake air temps 12.75°C lower than stock intercooler
- 42% larger than stock intercooler core

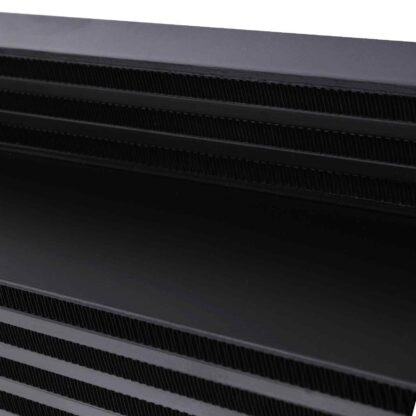

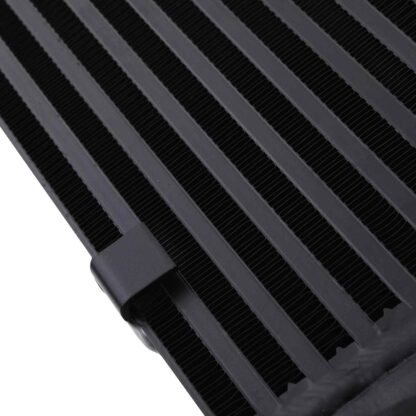

- Black coating improves heat dissipation properties
- Designed using state of the art 3D CAD and CFD modelling
- Direct replacement for the original core

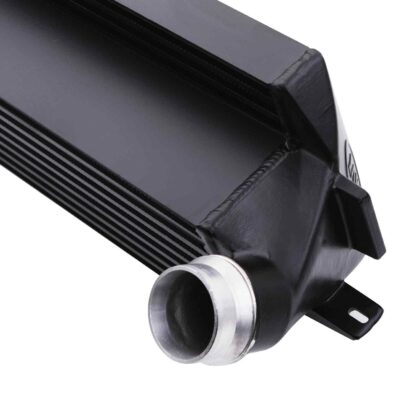

- TIG welded for maximum strength and durability
Fitments
BMW 1 Series F20/F21 114i N13 – 2012-2015
BMW 1 Series F20/F21 116i N13/B38 12-19
BMW 1 Series F20/F21 118i N13/B38 12-19
BMW 1 Series F20/F21 120i N13 15-16
BMW 1 Series F20/F21 125i N20 12-15
BMW 1 Series F20/F21 114d N47/B37 12-19
BMW 1 Series F20/F21 116d N47/B37 12-19
BMW 1 Series F20/F21 118d N47/B47 11-19
BMW 1 Series F20/F21 120d N47/B47 11-19
BMW 1 Series F20/F21 125d N47/B47 12-19
| Overall Length | 680mm |
|---|---|
| Overall Height | 197mm |
| Overall Width | 222mm |
| Core Length | 510mm |
| Core Height | 170mm |
| Core Width | 40mm |
| Inlet Size | 69mm |
| Outlet Size | 69mm |
