Replaces very restrictive twin intercooler setup and lengthily pipe-work

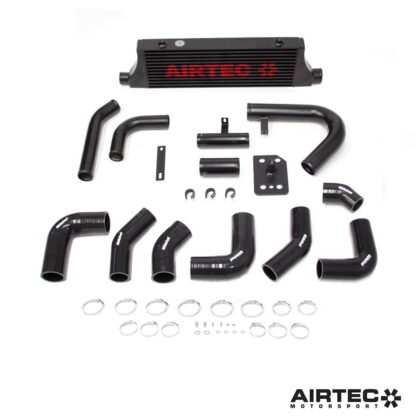

for Airtec's high flow 60mm core intercooler and shortened alloy pipe kit
we keep fast Turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body
this combination gives fast turbo spool up and maximum power output
n
nDyno test results - results taken from Fiat 500 Abarth
fitted with cat back exhaust and Airtec FMIC
n<ul>
n 	<li>Run 1. 120 degree into the intercooler and 22 degree out of the intercooler</li>
n<strong>AIRTEC Test results</strong> - Tim's 233.3 bhp (Airtec cooled) Tuned Mini R53 @ Amd rolling road 10th May 2013 - Note

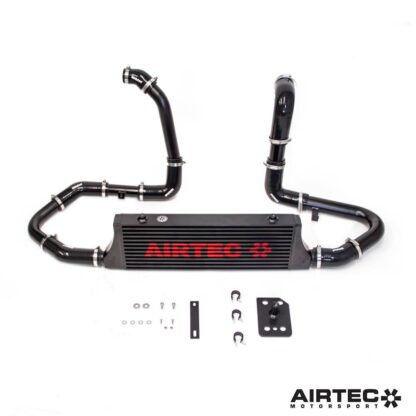

AIRTEC Motorsport Intercooler Upgrade for Fiat 595 Abarth

£525.99

Great addition to any standard or re-mapped 595’s
n
nFast Turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body, this combination gives fast turbo spool up and maximum power output.
n
nWill fit any Abarth with Garrett GTI446 Turbo.
n
nAIRTEC part no: ATINTFT3 by Airtec Motorsport

EAN: N/A SKU: Airtec Motorsport/ATINTFT3 Category:

More Information

Product Information

Replaces very restrictive twin intercooler setup and lengthily pipe-work, for Airtec’s high flow 60mm core intercooler and shortened alloy pipe kit, we keep fast Turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body, this combination gives fast turbo spool up and maximum power output
n
nDyno test results – results taken from Fiat 500 Abarth, fitted with cat back exhaust and Airtec FMIC
n

    n

  • Run 1. 120 degree into the intercooler and 22 degree out of the intercooler
  • n

  • Run 2. 122 degree into the intercooler and 22 degree out of the intercooler
  • n

  • Run 3. 123 degree into the intercooler and 22 degree out of the intercooler
  • n

  • Conclusion, the Airtec intercooler dropped the intake temperatures by 100 degree on each run and did not suffer from heat soak.
  • n

nFeatures:
n

    n

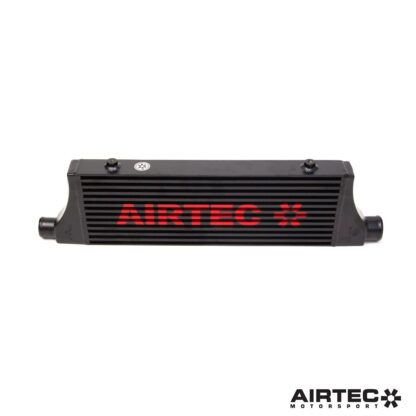

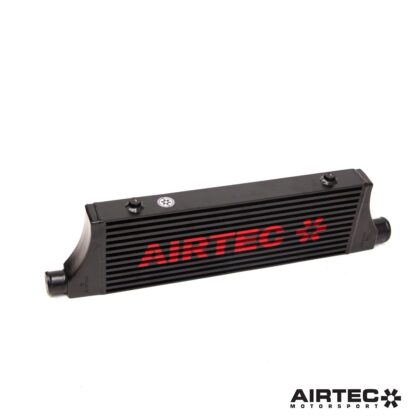

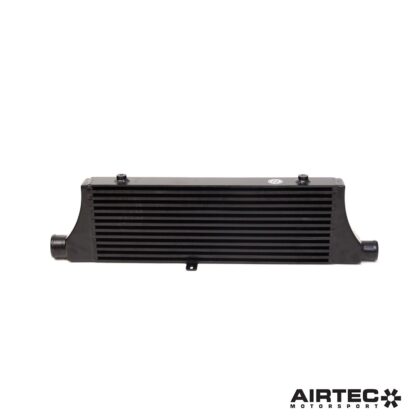

  • 60mm thick proven bar and plate core, specced to Airtec design
  • n

  • Airtec logo’d Cast end tanks for improved Airflow and un-beatable strength
  • n

  • Dyno proven, gain BHP
  • n

  • Lower intake temps means safer engines ‘FACT’
  • n

  • Shorter charge pipes than standard twin intercooler set-up, short pipes mean fast turbo spool up
  • n

  • Fitting takes 2-3 hours
  • n

  • 3 year un-limited mileage warranty
  • n

  • Available in Pro-Series satin Black
  • n

  • Airtec Logo available @ no extra charge
  • n

  • Un-beatable value for money
  • n

nWill fit any Abarth with Garrett GTI446 Turbo.
n
nWill fit the following:
n
nSeries 3 180 Competizione (Mid-Late 2015)
n
nSeries 4 Turismo
n
nSeries 4 Competizione
n
nApproximate dimensions:
n
nHeight – 205mm
n
nWidth – 820mm
n
nThickness – 65mm

Tech Specs

Specification

Brand

Hose Colour

, , , ,

MPN

ATINTFT3

Intercooler Finish
