Product Information

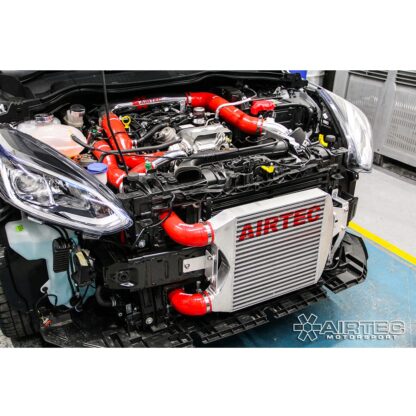

AIRTEC Front Mount Intercooler for the MK8 Fiesta 1.0 ST-line

Proven horizontal 60mm core, runs left to right of the end tanks this gives the single pass design intercooler the shortest route for the charged air to pass though, with such a small turbo, the faster the charged air can get in and out the better.

Another great must have with our design is making full use of the hottest part of the intercooler, the top section where the hot charged air is coming in, this is on full show giving the intercooler a bigger surface area allowing for more cooling.

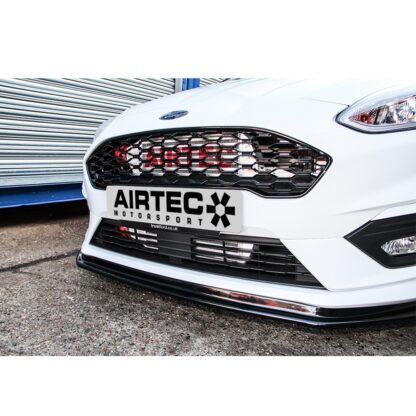

Tip, more of the grille can be opened up with Dremel tool or drill to allow more air flow to the intercooler, we suggest to do this whilst fitting.

Dimensions:
Width: 525mm
Height: 378mm
Depth: 60mm
Capacity: 11.9 litres
Front area: 19,845cm²

Features:

• Twin-pass huge 60mm core intercooler with flowed cast end tanks, this means less welding and a stronger intercooler
• Comes with all necessary pipe work and fittings
• Finished In Pro-Series Black
• No cutting  of the bumper needed with our intercooler kit
• Unbeatable value for money
• Uses original crash bar holes, no drilling or modification required
• AIRTEC 3 year unlimited mileage warranty
• Fitting will take approximately 1-2 hours, supplied with fitting guide

Please note: Currently sent with Mk7 1.0 Fitting instructions as a fitting guide. Does not fit cars with adaptive cruise control.

Registered Design Right Number: Application Pending

AIRTEC part no: ATINTFO41
