Product Information

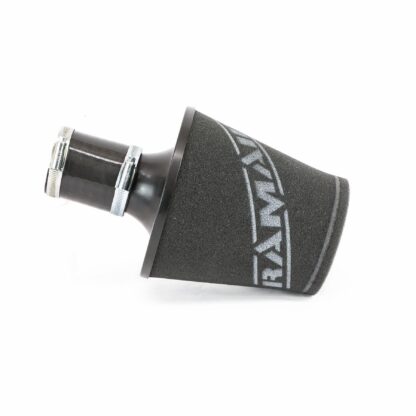

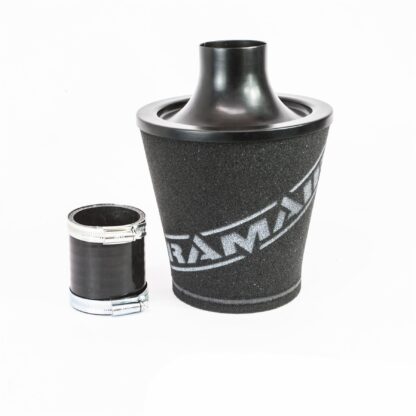

This filter is designed to be inserted into a flexible hose such as a rubber or silicone intake pipe.

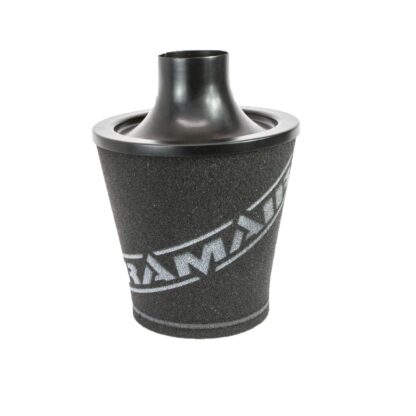

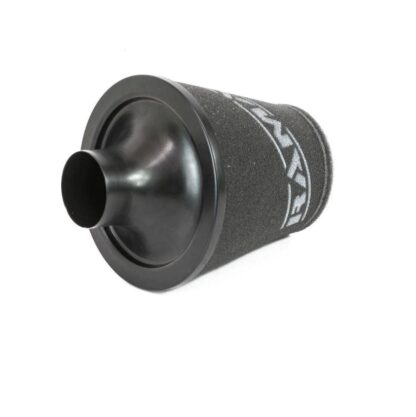

These filters have an aluminium ram-pipe neck and a cone shaped filter element. This integral cone channels all the incoming air, towards the inlet manifold, and in doing so, reduces unnecessary turbulence. These filters are also cone shaped because it enables easy fitting to space restricted engine compartments and with the extremely large amount of foam surface area an added boost of power to your engine too!

The filter is specially strengthened using a stainless steel internal mesh, which we have developed & used in european and world touring cars!

With its large size, technologically advanced filter and bell mouth alloy spun base this filter kit is capable of handling extremely large power & flow rates.

Clean using our filter maintenance kit – CK-003

Filter Outer Neck Diameter: 60mm (2.4inch)

Filter Neck Length: 55mm (2.2inch)

Filter Overall Length: 225mm (8.8inch)

Filter Base Width: 175mm (6.9inch)

Filter Top Width: 120mm (4.7inch)

Filter Material: Dual Layer Foam

Filter Base Material:

Filter Base Finish: Powder Coated Black
