Product Information

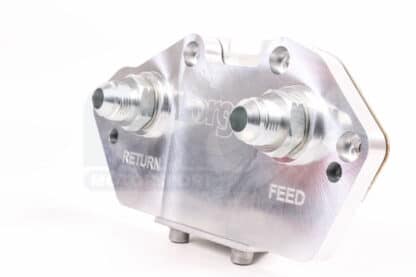

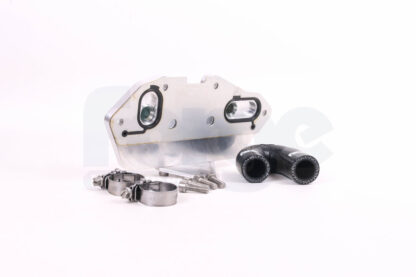

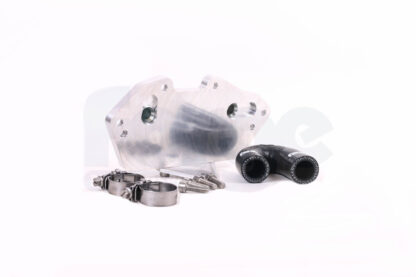

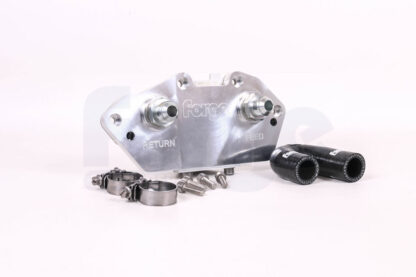

A must on any tuned Audi 3.0TFSI engine. This oil cooler adapter plate enables the custom installation of an aftermarket oil cooler. This kit replaces the OEM water/oil heat exchanger allowing oil and water systems to run separately reducing the heat transfer between the two. With this billet adapter fitted the oil can then be routed to a large external oil cooler. CNC machined at our Dorset machine shop from aircraft grade aluminium alloy and clear anodised.

Supplied with 2x M18 to Dash/JIC 8 adapters.

This part will fit all engines which has the OEM oil cooler Part No. 06E 117 021 G

Production year               Model                                  Engine code

2013-2015                       A4/S4                                  CREC,CRED

2012-on                           A5/S5                                  CREC, CRED, CTDA

2015-on                           A6/A6 Allroad/S6                CREC

2015-on                           A7                                       CREC
